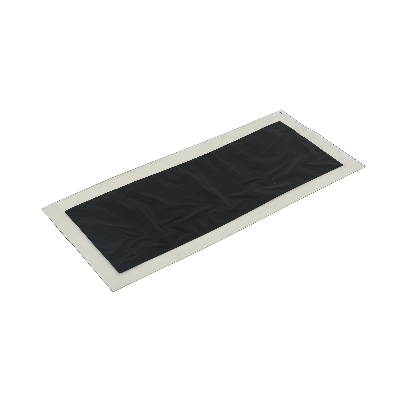

Pem Membrane Electrode Mea for Hydrogen Fuel Cell Stack Backup Power System

Our AdvantagesTaiji's MEAs offer an unprecedented combination of performanceand durability at ultra-low cost, eligible for the full subsidy points forChina's national subsidy program.Product DescriptionActive Area: 25 - 600cm2 Frame (Subgasket) Design: Customizable Production Capacity: 200,000 square meters per year, withan approximate value of USDS187 million, contributed bytwo manufacturing lines: Manufacturing Line 1: 40,000 square meters per year, withan approximate value of USD37 million, and Manufacturing Line 2: 160,000 square meters per year, with an approximate value of USD150 million.product parameter:  Product NameTJ-MEA-ACS (Fully Local CCM)Active Area180 cm² (Customizable)Pt Loading≤0.4 mg/cm²Power Density0.4 - 0.6 W/cm²Cathode Durability≤10 % voltage loss @ 2 A/cm² after 30,000 voltage cycles ≤45 % ECSA loss after 30,000 voltage cyclesDurability for SU/SDVery HighReversal Tolerance≥140 min Product NameTJ-MEA-HDActive Area250 cm² (Customizable)Pt Loading≤0.45 mg/cm²Power Density≥1.4 W/cm²Cathode Durability≤5 % voltage loss @ 2 A/cm² after 30,000 voltage cycles ≤30 % ECSA loss after 30,000 voltage cyclesDurability for SU/SDMedium to HighReversal Tolerance≥ 180 min @ 0.2 A/cm²
