Ruili Electric Company Profile Zhejiang Ruili Electric
cl.,Ltd was established in 2006,which now has 55,000 Square Meter
production area,200 employees,8 engineers that
annual sales can reach 200 million.Our company now is
located in LiShui city,Zhejiang province. As an
all-around advanced technology enterprise who is turning produce,
develop and study together in the industry of high voltage of
Insulators,Zinc Oxide Surge Arrester, Fuse Cutout,Disconnect
switch,Cables and Power Fittings. Our company follows
the principle of high quality and high level,carring out ISO9001
Quality Management System.And we also focus on product
innovation.By now we have got a lot design patents.The prodtucs get
the type test reports from Quality Inspection and Testing Centre of
Electric Equipment Ministry of Electric Power,P.R. of china accord
with IEC,ANSI,AS,ENstandards.So our products are well received both
at home and abroad. we hope to establish a long-term
and pleasant copperation with you.welcome to visit and negotiate

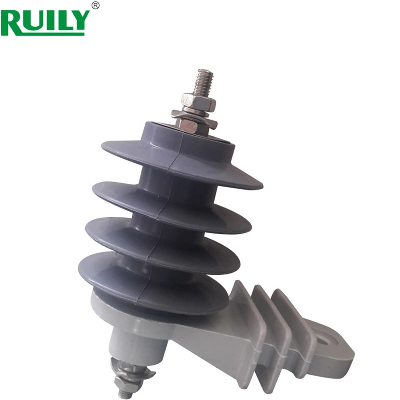

with us!Product introduction Zno lighting
arrester is one kind most world advanced over-voltage protector at
present due to its core components of resistance appling Zno and
other metal oxide to ke of comparing with traditional carborundum
arrester,it improves greatly V-A characteristics of
resistance,increases the getting through ability of
resistance,thereby it brings fundamental ,change to features of
arrester. Under normal working voltage.The
current passing arrseter only A class,when bearing over voltage.The
excellent non-linear V-A features of arrester would make effect,the
current passing through the arrester increase high to thousands of
Ampere instant the arrester is under getting through state,to
release over-voltage energy therefore it effective limits the
damage to power transmission equipments due to over voltage.Main
Technical ParametersMain technical parameters: Model
TypeRated Voltage/kVMCOV/kVSteep Current
ImpulseSwitching Current ImpulseLightning
Current Impulse2000s Square Wave
Impulse Current Withstand4/10 S High
Current
Impulse/kVY10W-332.559.57.79250100Y10W-665.119.515.418250100Y10W-997.6528.523.127250100Y10W-10108.4363023250100Y10W-11119.4403330250100Y10W-121210.23830.836250100Y10W-151512.747.538.545250100Y10W-181815.35746.254250100Y10W-21211766.553.963250100Y10W-242119.27661.672250100Y10W-272721.985.569.381250100Y10W-303024.49576.590250100Y10W-333326.8104.584.799250100Y10W-36362911492.4108250100Y10W-424234.1132.3100.1126250100Y10W-484839.0152.0126.0150400100Y10W-545443.0171.0180.0162400100Y10W-606048.0208160.0180400100Y10W-666653.4230172.0198400100
