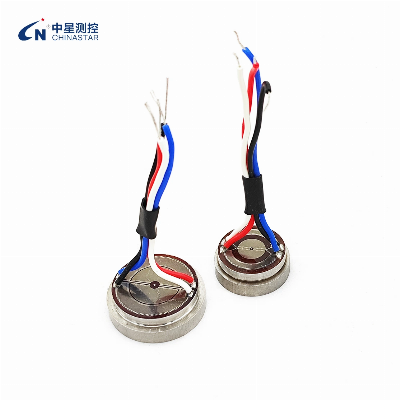

High Stability and Accuracy 17-4pH Solid Structure 0-50MPa Pressure Sensor

Product DescriptionHigh stability and Accuracy 17-4PH Solid Structure Stainless Steel Wide Measuring Range Pressure Sensor 0-50Mpa    MCS19 pressure sensor (Metal Coalesce System) represents a world-class innovative high-end pressure sensor technology originally created by Chinastar M&C. Chinastar owns the complete independent intellectual property rights and knowhow technology. The sensor based on 17-4PH stainless steel demonstrates the highest accuracy and stability within a very wide temperature range and are an ideal choice for demanding applications. Product Parameters     Classification AccuracyStandardClass AClass BNon-linearity (%FS)±0.25±0.10±0.10Hysteresis (%FS)±0.10±0.05±0.02Repeatability (%FS)±0.10±0.05±0.02Standard Range0 ... 0.5, 1, 2, 5,10, 20 or 50 MPaPressure TypeGauge, Absolute, Sealed gaugeOver Pressure2XBurst Pressure≥ 20XExcitation2~10VDC Zero Output≤ ±0.2mV/VOutput Sensitivity1.5~2mV/VInput /Output Impedance480 Ω ~ 800 Ω; > 1600 Ω (A)Response Frequency> 1kHzT.C. Zero≤ 0.01 ; 0.005 (A) ; 0.0025 (B) % FS/ ºCT.C. Span≤ 0.01 ; 0.005 (A); 0.0025 (B) % FS/ ºCLong-term Stability
