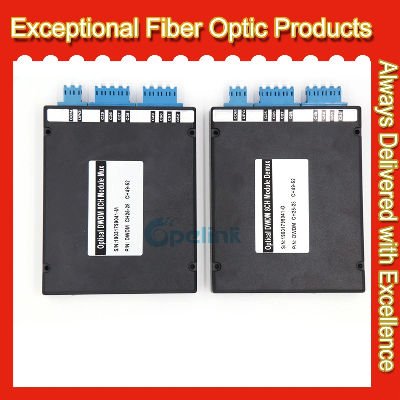

8CH LC/Upc Mux/Demux Plug-in Module with Express Port DWDM

8CH LC/UPC Plastic ABS Box Mux/Demux Plug-in Module Optical DWDM with UpgDWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength     Features:Low insertion loss, low PDL High  Isolation Compact  Design Good channel-to-channel uniformity High Reliability and Stability Application:Channel Add/Drop DWDM Network Wavelength Routing CATV Fiber Optical System Optical Specifications:                       ParameterValueChannels Number248163240Central Wavelength(nm)ITU-T GridChannel Spacing(GHZ)100/200Bandwidth(nm)ITU-T ±0.11/ ITU-T ±0.25I.L(dB)Typ.1.21.62.23.23.85.2MAX.1.41.82.85.05.66.0Ripple(dB)≤0.5PDL(dB)≤0.10≤0.15≤0.20≤0.25≤0.30≤0.30Isolation(dB)Adjacent Channel≥25Non-adjacent Channel≥45Directivity(dB)≥50R.L(dB)≥45Operating Temperature(ºC)-5~+75Storage Temperature(ºC)-40~85Note: All the data above does not include connectors    Order Information:TypeChannel PassbandUpgrade PortPortFirstChannelPigtailFiberLengthConnector(Input-Output)PackageM=MuxD=DemuxM+D=Mux+ Demux 1=100GHz2=200GHz U= Yes0= No1002=1X2   1004=1X41008=1X81016=1X16XX=otherC21C22C23(Refer to ITU Channel Table)L=900um loose  tube2=2.0mm3=3.0mmB= baare fiberA= AdaptorS1=G652DS2=G657A1X= other0.5M=0.5M1M=1MX=otherSU=SC/UPC   SA=SC/APCFU=FC/UPC    FA=FC/APCST=ST/UPC    LA=LC/APCLU=LC/UPC    00=NONEXX= Other01,02,03,04,05H,L,U,G,X    Packing Information:1CH2/4CH8CH16/18/40/48CH05       01/L/G/U02/L/G/U03/L/H/G/U04    Package Dimension:  No.DimensionNo.Dimension05Φ5.5×L38 Stainless steel tube02120× 80× 18 Plastic box0490 X 20 X 9.5 Plastic boxL150 × 115 × 18 Aluminum box01100 × 80 × 10  Plastic boxW150X65X16H150 × 115 × 18 Plastic boxY127X70X11BΦ5.0×L38 Stainless steel tubeU19''x=1,2,3,4 U rack mountGLGX box : 1G, 2G, 3G, 4GXCustomized package03141× 115 × 18 Plastic box    FAQ:    Q1. Can I have a sample order for this product?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.  Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than   Q3. Do you have any MOQ limit for sample order?A: Low MOQ, 1pc for sample checking is available  Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.  Q5. How to proceed an order for the product?A: Firstly let us know your requirements or application.    Secondly We quote according to your requirements or our suggestions.   Thirdly customer confirms the samples and places deposit for formal order.  Fourthly We arrange the production.  Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty to our formal products.Q7: What action will you take if there are some product problems?A: If there are defective ones in the batch of products, we will offer spare ones for.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
