High Quality New Materials Flexible Aluminum Alloy Conductor Cable for Photovoltaic

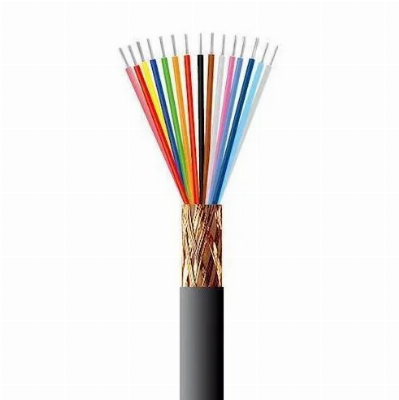

Product DescriptionControl Cable   ApplicationsIt is mainly applicable to controlling, monitoring, interlocking circuits and protection circuits, etc., playing the role of transmitting and controlling signals. On special occasions, fire-retardant, low-halogen, and fire-resistant control cables can be used.   Remark:The control cables are all 750V and below, and the conductor sectional area is large. The signal line is 250v primarily, and the conductor sectional is small, which is used to transmit signals or weak current for measurement. Product name Control Cable Application Suitable for the interconnection in controlling, protecting, and measuring system Number of core 2~61 cores Rated Voltage 450/750V conform to IEC 60227-2007 600/1000V conform to IEC 60502-2004 Test Voltage AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V Maximum conductor operating temperature 90ºC for XLPE insulation 70ºC for PVC insulation Core's recognition Up to 5 cores with color above 5 cores with number Color of sheath Black and customer designated Manufactured Standards IEC 60227-2007, IEC 60502-2004 Conductor type IEC 60228-2004 class 1, class 2, and class5 Nominal Cross-section area:0.5~10mm2 We can produce according to your need and provide technical data     Operating requirements:1. Control and signal cables are used to control the measurement system and should be tested before use to make it operate safelyand reliably.2. Generally, it is mainly used for fixed laying. However, the joint between the cable core and the electrical appliances,instruments and equipment are susceptible to bending, so the core is required to withstand bending many times without breakage.3. Operating voltage: Control cable and signal cable generally are divided into power control and signal control. In use, theoperating voltage is below 380V, lower for the signal cable. Considering the insulation level, both of them can be used in common.4. The operating current of the signal cable is generally below 4A. When the control cable is used as the control main equipment,the current is too high. Therefore, the sectional area should be selected according to the voltage drop and mechanical performance of the line.5. It is not allowed to use a cable for both power control and signal transmission.   We are Qingdao Dadi Energy Co., Ltd., located in Qingdao, China, specializing in manufacturing and selling wires and cables. We can offer you customized service of high and low-voltage cross-linked cables, long-life wires, and cables. Our wires and cables have been certified in 28 European countries and exported to over 100 countries and regions, complying with CCC and ISO9001 certificates.We have remained true to our core principles of customer service, on-time delivery, uncompromised quality, and exceptional value at competitive prices.       Q1:Who are you?  What are your company's Main Products? This is Qingdao Dadi co., ltd., located in Qingdao, China, specializing in manufacturing and selling full series of wires and cables, such as rubber sheathed flexible cables, sheathed cable, control cable, power cable, aerial insulated cables, aluminum stranded wires and steel core aluminum stranded wires, PVC insulated non-sheathed (soft) wire, and cable, special cable. Q2: How can I get the Quotation of the products?Pls send your demand or specification to us or just E-mail our trade Manager, We'll reply to you within 2 hours in the Working days.Q3: What does your company do regarding Quality Control?Firstly, All raw materials selected are of the highest quality level. Secondly, Professional and skillful workers care for every detail in handling the production. Thirdly, Quality Control Department is specially responsible for quality checking in each process and final check before shipping to our customers.Q4: I didn't find my needed model on this page. Do you provide OEM Project Service?Surely, our factory could manufacture more than10000 models, OEM & ODM order is warmly welcome and we can you put your brand name, (logo) on these products. What's more, our R&D team will give you professional suggestions.Q5: How could I get the Sample?We are honored to offer you samples if we have them in stock, usually, it is not free, but we will return it to you on first-time mass order .but you need to pay the freight. If you have a courier account or forwarder in China, we can send it to your courier to collect samples.Q6: How long is the Delivery Time?For Sample: 1-3 working days; For small orders: 3-10 working days; For mass orders: 10-18 working days. It is better to communicate with us if you are interested to place an order. It depends on your order quantity.Q7: What are your payment terms?Our payment term is usually T/T 30% in advance, the balance before picking up the goods, or L/C at sight.Q8: What is your Warranty? How about MOQ?All the products will have a 24-month Warranty, Our company has MOQ requirements, but we also accept small quantitie
