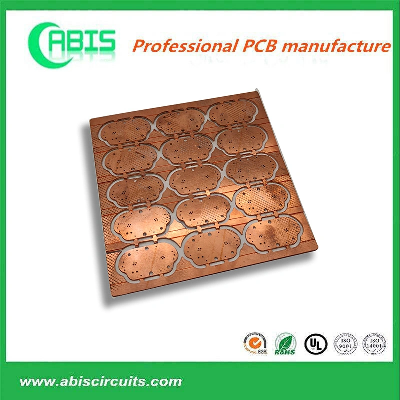

Thermoelectric Ccopper substrate heat dissipation Truck light
Copper Core PCB 1. Single, Double side & Multi-layer PCB.2.
Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw
Hole(Counterbore), Press-fit, Half Hole.3. HASL lead-free,
Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable
mask,4. Printed Circuit Boards adhere to IPC Class 2 & 3
international PCB standard.5. Quantities range from prototype to
medium&big batch production.6.100% E-Test. ABIS Circuits
Co., Ltd established in 2006, Located in Shenzhen, our company
has about 1100 workers and two PCB workshops with about 50000
square meters. Factory: Operation plant space: (I)
10000 Square meters(II) 60000 Square meters Employees: (I)
300 Man Powers(II) 900 Man Powers Eng. Technical: (I) 20 QA
QC Engineers(II) 60 QA,QC Engineers Our products are mostly
used in the field of Industrial Control, Telecommunication,
Automotive products, Medical, Consumer, Security, and
others. Now we have passed ISO9001, ISO14001, UL, etc., With
constant hard work of our staff and ongoing support from customers
both home and abroad, we can provide up to 20 layers, Blind and
buried Board, high-precision(Rogers), High TG, Alu-base and
flexible boards to our customer with fast turn and high-quality
level. Technical capabilities-PCBACapacity Single and
double-sided SMT/PTHYesLarge parts on both sides, BGA on both
sidesYesSmallest Chips size0201Min BGA and Micro BGA pitch and ball
counts0.008 in. (0.2mm) pitch, ball count greater than 1000Min
Leaded parts pitch0.008 in. (0.2 mm)Max Parts size assembly by
machine2.2 in. x 2.2 in. x 0.6 in.Assembly surface mount
connectorsYesOdd form parts:Yes, Assembly by handsLEDResistor and
capacitor networksElectrolytic capacitorsVariable resistors and
capacitors (pots)SocketsReflow solderingYesMax PCB size14.5 in. x
19.5 in.Min PCB Thickness0.2Fiducial MarksPreferred but not
requiredPCB Finish:1.SMOBC/HASL2.Electrolytic gold3.Electroless
gold4.Electroless silver5.Immersion gold6.Immersion tin7.OSPPCB
ShapeAnyPanelized PCB1.Tab routed2.Breakaway
tabs3.V-Scored4.Routed+ V scoredInspection1.X-ray
analysis2.Microscope to 20XRework1.BGA removal and replacement
station2.SMT IR rework station3.Thru-hole rework
stationFirmwareProvide programming firmware files,Firmware +
software installation instructionsFunction testLevel of testing
required along with test instructionsPCB file:PCB
Altium/Gerber/Eagle files (Including specs such as thickness,
copper thickness, solder mask colour, finish,
etc)-PCBLayers1~32Board Thickness0.1mm-8.0mmMaterialFR-4,
CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etcMax Panel
Size600mm×1200mmMin Hole Size0.1mmMin Line
Width/Space3mil(0.075mm)Board Outline Tolerance0.10mmInsulation
Layer Thickness0.075mm--5.00mmOut Layer Copper
Thickness18um--350umDrilling Hole (Mechanical)17um--175umFinish
Hole (Mechanical)0.10mm--6.30mmDiameter Tolerance
(Mechanical)0.05mmRegistration (Mechanical)0.075mmAspect
Ratio16:01Solder Mask TypeLPISMT Mini. Solder Mask
Width0.075mmMini. Solder Mask Clearance0.05mmPlug Hole
Diameter0.25mm--0.60mmImpedance Control Tolerance10%Surface
finishENIG, OSP, HASL, Chem. Tin/Sn, Flash
GoldSoldermaskGreen/Yellow/Black/White/Red/BlueSilkscreenRed/Yellow/Black/WhiteCertificateUL,
ISO 9001, ISO14001, IATF16949Special RequestBlind hole, Gold
finger, BGA, Carbon ink, peelable mask, VIP process, Edge plating,
Half holesMaterial SuppliersShengyi, ITEQ, Taiyo, etc.Common
PackageVacuum+CartonEquipment-PCBA-PCBProduction processPCB Product
ShowRigid PCB, Flexible PCB, Rigid-Flex PCB, HDI PCB, PCB
AssemblyProduct ApplicationConsumer Electronics, Transportation,
Telecommunication, Medical Equipment,
Automotive...CertificatesPackagePCB: Sealed bag, Anti-static bags,
Suitable carton.PCBA: Antistatic foam bags, Anti-static bags,
Suitable cartons.Customized Packaging: The carton outside will be
printed with the name of the customer address, mark, the customer
needs to specify the destination, and other
information.Delivery:FAQ :Q1: How can I got
quotation:. Please send gerber file
with format: .PCB / .P-CAD / .DXP / .CAD / .GerberQ2: Can
you manufacture my PCBs from a picture file?. Could you please
provide a sample?Q3: Do you have PCB in stock?. Most of
our PCB boards are customized, according to Gerber file..
ABIS has a sample in stock that could be sent to you for quality
checking always.Q4: What board manufacturer do you use for FR4?.
Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and
Shengyi (China).Q5: Will my PCB files be checked?. Checked within
12 hours. Once Engineer's question and working file checked, we'll
start the production.Q6: What do you require in order to produce an
assembly quotation?. Bill of materials (BOM) detailing:a),
manufacturers parts numbers,b), components suppliers' parts
number (e.g. Digi-key, Mouser, RS )c), PCBA sample photos if
possible.d), QuantityQ7: Do ABIS CIRCUITS bevel gold
fingers?. Yes. A standard 45-degree bevel also bevels at
15 or 30 degre
