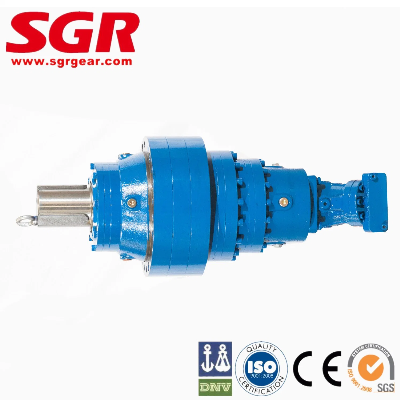

Transmission Gear Reducer Planetary Gearbox Reduction Gear Box for Gear Motors

Transmission Gear Reducer Planetary Gearbox Reduction Gear Box for Gear MotorsModel: 200-885Ratio: 3.15-7800Output Torque :1500Nm-540000NmRating Power :0.25KW-200kwDescription :N series of planetary reducers from SGR are widely used for industrial and heavy duty severe applications . planetary reducer feature with compact size, low noise , excellent reliability ,long life . In-line or right-angle planetary gearboxes are available in male and female shaft configurations. The SGR male shaft solution (splined or cylindrical) is able to withstand strong radial or axial loads on the output shaft. As a leading planetary gearbox manufactory in China , SGR planetary reducer is produced by modular design, combined according to customer requirement, housing material from SGR with nodular cast iron which can increases gearbox's rigidity and antiknock, heavy-duty bearing is installed at low-speed shaft, it can bear big radial load due to proportionate distribution of torque ,every SGR gears are case hardened to get high reliability and long life . SGR planetary reducer have 16 models for different torque range ,each SGR model have 1-5 stages to achieve different ratios , SGR planetary reducer have wide rang selection of high speed design: cylindrical with key, hydraulic motor, electric motor .Installation in SGR is multiposition ,various fasten type .N series planetary gearbox torque sheet with models   Gear unit size200201240241280281353/354355400401Normal output torqueT2N[Nm]15002000350040004300730013000160002000023000Gear unit size428429445446510542543695810885Normal output torqueT2N[Nm]260003000032000430006300075000100000150000300000420000  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
