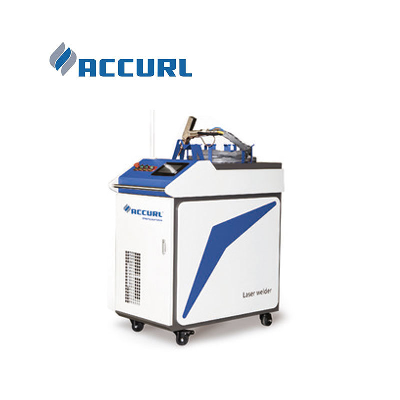

ACCURL Continuous/Modulation CNC Fiber Laser Welding
Machine Product DescriptionHANDHELD FIBER LASER WELDING
MACHINE WITH AUTO WIRE FEEDER ACCURL Fiber Laser welding can
be used in welding stainless steel, aluminum, copper, gold, silver,
chromium, nickel, titanium and other metals or alloys, can also be
used for a variety of welding between different materials, such as:
copper - brass, titanium-gold, Titanium - molybdenum, nickel -
copper and so on. Welding range: 0.5~8mm carbon steel,0.5~4mm
stainless steel, aluminium alloy 0.5~6mm, brass 0.5~4mm. Main
Feature1.The system is mainly composed of a laser unit and a
welding unit. 2.Hand-held welding, taking into account the
flexibility, high efficiency and high weld quality of laser
welding. 3.Modular design and layout of the overall equipment,
beautiful and easy to maintain and debug. 4.High system
flexibility, compatible with a variety of models, and short
changeover time. 5.The internal design is dexterous, and the good
interactive control system expands the tolerance range of the
machined parts and the weld width, solves the disadvantage of small
spot size, and welds are better formed. 6.The shape is light, the
body engineering design method is adopted, and the grip is
comfortable; the hand is easy to control, and the operation is
simple and easy to use. 7.With multiple safety alarms, the light is
automatically locked after the workpiece is removed, and the safety
is high. 8.Beautiful weld seam, fast speed, no consumables, no weld
marks, no discoloration, no need for post-grinding. 9.Can be
equipped with a variety of angle nozzles to meet the welding needs
of different products.Detailed PhotosACCURL BRAND SmartLine
is the general purpose 2D laser cutting machine by Accurl utilized
around the globe across a multitude of applications,manufacturing
demands, and budgets. Available in five sizes and with laser powers
ranging from 1,000W to 6,000W fiber Laser.Break through the
limitations of the workbench and save space costs The Accurl
handheld laser welding machine is compact in design, and the FSC
1000w/1500w /2000w is only 1/3 of the solid YAG laser welding
equipment. Small body shape, free up more space, reduce the cost of
equipment to occupy the plant space. Transmission fiber can be
optional on demand 5/10/20 meters, up to the range of
free-to-adjust.Easy to use, saving labor costs Compared with
traditional arc welding, FCS-1000 enjoy following advantage:
user-friendly design and technology upgrade, simple operation,
operators do not need skilled technical certificate to achieve
exquisite welding.There is no need for secondary grinding after
welding, which greatly reduces the professional limitations of the
operator and the cost of manpower.Fast welding saves on usage
costs Compared with traditional welding equipment: the
FSC-1000 welding speed is more than 2 times that of solid YAG laser
welding, and 3-5 times that of arc welding. The efficiency of
photoelectric conversion is more than 30%, compared to 3% of solid
YAG lasers, and low energy consumption reduces more unnecessary
costs for production and processing.SPECIFICATIONModelFCS-1000W
handheld laser welding machineLaser device1000W/ 1500W / 2000WLaser
wave length1080nmWelding speed range0-120mm/sWelding gap≤1/5 of the
thickness of sheet metalFiber lengthStandard 15mWater
coolingSpecial for handheld weldingElectromechanical380V/50HZ or
220V optionalConsumableNitrogen welding, output pressure
0.2MpaTotal power6KWDimensions1300X650X1100mmTotal weight150KGView
More Products,click here...Company Profile/* January 22, 2024
