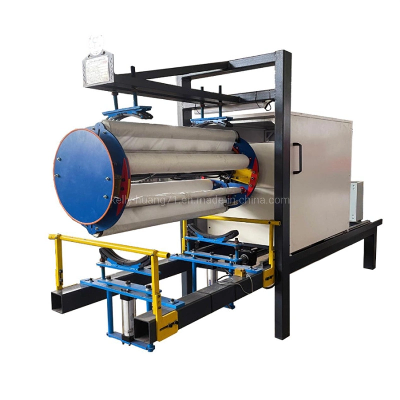

Product Description1. This equipment is a special equipment for
fully automatic touch screen NC wiping the outer wall of the steel
barrel.2. This equipment is parallel to the front end of the
painting line for the treatment of dust, dirt and oil stains on the
outer wall surface of the steel barrel and the end faces of the
upper and lower bottom covers.3. According to the working rhythm of
the painting production line, the equipment can set the working
time at will to meet the rhythm of various production lines.4. The
greatest advantage of this equipment is that there is no bump or
scratch in the whole process of wiping. Profiling wiping can
effectively remove the dust and oil dirt in the dead corners of
steel barrel ring reinforcement, W reinforcement and crimping
triangle area. The bottom and cover of the barrel shall be wiped
without leaving any core or sun.5. The working speed of the
equipment can be set at will according to your needs.6. The
parallel operation of this equipment can realize automatic feeding,
automatic wiping, automatic collection and release of cloth rolls,
automatic sending out of the station, and automatic entry into the
painting line from the vertical position on the vertical conveying
roller table of the steel barrel. The working time of each time
period can be set independently, the collection and release time
interval can be set independently, and the collection and release
of cloth rolls can be disassembled quickly. During the wiping
process, the dust can be automatically blown away. Realize all
automation and programming.7. During the operation of the
equipment, only one person is required to inspect, and the
appearance of the steel barrel shall be adjusted to meet the best
appearance requirements.Product Details Workpiece
diameteΦ571.5mm, Φ560mm.Steel plate thickness0.8-1.2mmSteel plate
length850-1000mmConveying methoddepending on the form of the
hostConveying elevation1050mm Related machineFull automatic
horizontal drum body inner cleaning machineThe equipment is mainly
used for the treatment of oil stain and other secondary pollution
on the inner wall of closed steel drums before the upper and lower
bottom covers are sealed. It completely replaces the degreasing
phosphating process and manual internal and external wiping process
to achieve zero emission and low-cost operation, providing a strong
cost price space for product market competition. It saves a large
amount of investment in phosphating line and labor cost. The
machine occupies a small area, saving most of the space occupied by
the phosphating line. Full automatic horizontaldrum body
external cleaning machineThis equipment fills the inefficient and
heavy link that there are a lot of water and oil stains on the
surface of steel drums after leak test on the production line of
the barrel making industry, which requires a lot of manual wiping
and degreasing. It can easily replace the degreasing phosphating
process, eliminate the pollution caused by degreasing phosphating,
and eliminate the energy consumption problem caused by degreasing
phosphating water washing and baking, and improve the production
efficiency. Full automatic double station cover cleaning
machineThe equipment is mainly used to deal with the oil stain on
the internal plane of the upper and lower bottom covers of closed
steel drums and the stretching parts. The equipment covers a small
area and can be moved freely with the site without any
restrictions. Due to the high efficiency of the equipment, 1-2
people are required to feed or receive materials when using it. The
number of covers wiped per hour is more than 1000. The speed is
adjustable, and it can also be incorporated into the middle line.
The single machine can be equipped with an automatic capping
machine. One person can load materials without receiving materials.
The capping machine is fully automatic, and the stacking height is
1.4m. Simple operation,convenient maintenance and
adjustment.Packaging & ShippingCompany ProfileWuxi Longterm
Machinery Technologies Co., LtdWe are drum machine manufacturer
with more than 25 years' experience, like automatic resistance
welding machine, inner & outer cleaning machine, corrugation and
flanging machine, painting booth and curing oven. With advanced
technology and the best service, we cooperate with many clients
from all over the market, Malaysia, Bangladesh, Vietnam, Turkey,
India, Columbia, some of them purchases our advanced machine to
upgrade their existing line to achieve higher output; some of them
purchases the whole line from us, incl. blanking line, welding,
painting booth etc. All machines are running very well in their
plants and help a lot! We believe that we are your best
choice. Customer Visiting FAQQ: How can we guarantee
quality?A: Always final Inspection before shipment;Q: What can you
buy from us?A: All the machine for the Steel drum production
line.Q: What services can we provide?A: Online technical support,
On-site installation, Spare
