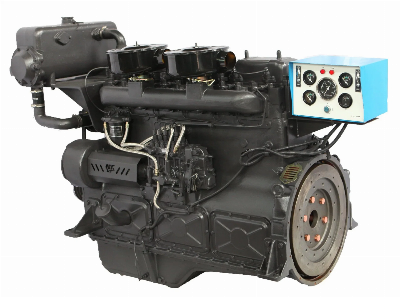

135 series marine diesel engine has a lot of improvements. Major
improvement is done on the systems which have great effect on
engine performance such as fuel system,combustion system,air intake
system and cooling system. The engine carries on the feature of
surviving harsh working condition while achieves low fuel
consumption and emmissions of advanced domestic engine of same
kind. The engine has good fuel economy at different operation
condition due to wide minimum fuel consumption range,and better
long-time propulsive force due to big low-end torque.
Model4135 ACa3-14135
ACa36135 ACa3-26135
ACa3-16135 ACa36135
AZCa3-16135 AZCa36135
AZLCa34135
Caf4135
ACaf6135
Caf6135
ACaf6135
JZCaf6135
AZCaf6135 JZLCafCylinder
number446666664466666TypeInline,direct injection,4-stroke,water
coolingAspirationnatural intaketurbocharged,turbocharged and
intercoolednatural intaketurbocharged,turbocharged and
intercooledBore(mm)135Stroke(mm)150150150140150140150140Compression
ration17:116.5:116.5:117:116.5:117:116:117:116:1Total
displacement(L)8.612.988.61212.91212.912Firing
order1-3-4-21-5-3-6-2-41-3-4-21-5-3-6-2-4Rated Power
(kw/hp)61.8/8373.5/10091/123112.5/153117.6/160144.2/196162/220178.3/243-------overload
Power
(kw/hp)68/9280.9/110100/136123.8/168129.4/176158.6/215178.2/242196.1/267-------UNA
Rated Power
(kw)59.77187107.7112.5138.2146170.66684.599118.8158.4178.2198UNA
overload Power (kw)--------6076.890108144162180overload
speed(rmp)1545-------Rated speed(rmp)1500Idle speed(rmp)700±25Min
Fuel consumption (g/kw.h)205200199198210205202Lub consumption
(g/kw.h)≤1.0Startng methodelectrical starting
(DC24V)Size(mm)1134x817x11761669x817x13181760x818x13181888x950x13911205x777x11901435x797x1190`1646x797x11901646x950x1452Net
weight(kg)950±501310±50950±501280±501310±501330±50SAESAE1
interface(135 interface optional), panel instrument SAE1SAE1
interface(135 interface optional), pointer instrument box(with
teletransmission)SAE1 interface(135 interface optional), panel
instrument SAE1SAE1 interface(135 interface optional), pointer
instrument box /* March 10, 2023 17:59:20
