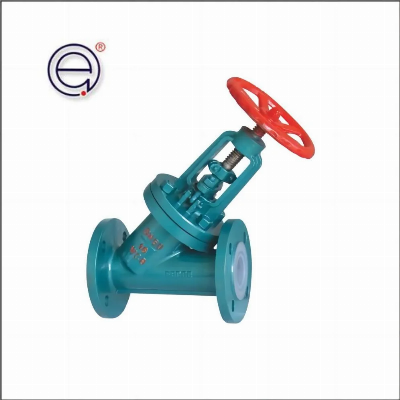

https://owlice.en.made-in-china.comFluorine-lined globe valve
Product overviewJ41F46 fluorine-lined cut-off valve has the
advantages of compact structure, flexible opening and closing,
strong corrosion resistance, and short travel (usually 1/4 of the
nominal diameter). Manual fluorine-lined cut-off valves are widely
used in petroleum, chemical and other pipeline systems as cut-off
media, but it should be emphasized that fluoroplastic-lined globe
valves are strictly prohibited from flow regulation to avoid
high-speed media flow erosion and damage the sealing surface caused
at the throttle. The fluorine-lined cut-off disc and stem are
designed as an integrated structure to prevent the possibility of
inner parts rushing out of the valve body due to pipeline pressure
fluctuations. The structure is compact and safe to use.J45F46
standard specification for fluorine-lined globe valves:Design and
manufacturing standards: GB/T 12233, GB/T 12235Structural length
standard: GB/T 12221-2005Connection flange standard: GB/T
9113Pressure temperature class: GB/T 12224-2005Test standard: GB/T
13927-2008 J45F46 Material of lining fluorine stop valvepart
namegray pig ironcast steelstainless steelextra-low-carbon stain
less steelZCPRPLRLValve body, valve
coverHT250WCBCF8CF8MCF3CF3MspheromeWCBWCBCF8CF8MCF3CF3MLiner layer
/ seatFEP (F46) PCTFE (F3) PFA (Poly)stuffing box
glandHT250WCBCF8CF8MCF3CF3MfillingPTFE (F4) PTFE PTFE (F4)
PTFEbolt35351Cr17Ni21Cr17Ni21Cr18Ni91Cr18Ni9nut45450Cr18Ni90Cr18Ni90Cr18Ni90Cr18Ni9hand
shankWCCWCCWCCWCCWCCWCCJ45F46 Lined fluorine stop valve execution
standard nominal pressurePN16strength test (Ps)Seal pressure
resistance1.6MPaValve body pressure resistance2.4MPaworking
pressure1.6MPaend-use
temperatureJ45F2-1.6-50°C-+120°CJ45F46-1.6-50°C-+120°CApplicable
mediumStrong corrosive mediaFrequently asked questions:1. Yes,
sample orders can be used for quality inspection and market
testing. But it is not free.2. Production usually takes about 25-30
working days. For large orders, it depends on the number of
orders.3. In order to recommend the right product to you, please
provide details, such as size, material, pressure, model.4. Payment
is mainly T/T. Payment period: 30% advance payment, 70% balance is
paid before shipment or based on a copy of the bill of lading.5.
The warranty period is 12 months after leaving the factory. Due to
quality problems, we can repair or replace it.6. According to your
requirements, we have standard models in stock. Some special
products and large orders will be newly produced according to your
order.7. Yes, different models can be mixed in one container.8.
Quality first, we always attach importance to quality control from
the beginning to the end of production. Before painting, packaging
and transportation, each product will be fully assembled and
carefully tested.9. Yes, we have the right to export and sell
products around the world.10. Our company has passed API 6D, CE
0036 and ISO9001.TestAfter all the goods are completed, the port
will be provided.For more information on our
website: https://owlice.en.made-in-china.com/* March 10, 2023
