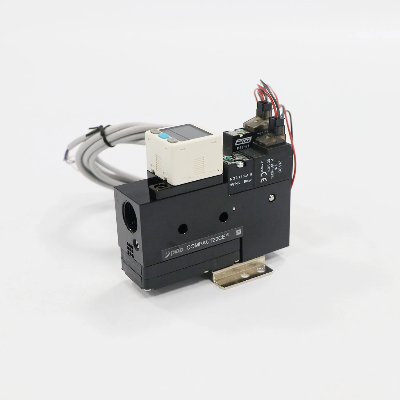

Piab Vacuum Generator Compact 20CE Piab 1240506 PNP Vacuum Generator Pumps

PIAB Vacuum Generator COMPACT 20CE PIAB 1240506 PNP Vacuum Generator PumpsCOMPACT 20CE is a cost-effective vacuum generator that maintains PIAB proven high-performance, low-energy reliable technology in a modular design that is easy to maintain and service.Functions and features:---Configure Piab multistage vacuum generator---Integrated electric vacuum and blow-off valve---Blowing flow control valve---Vacuum sensor with user-friendly interface or reserved vacuum detection port is optional---The multistage vacuum generator can be disassembled, cleaned and replaced, and the              troubleshooting is simpler---8mm or 10mm quick connector can be configuredProduct Parameter:Vacuum technologyMultistage vacuum generatorWorking air pressure (Mpa)0.38~0.6Maximum Vacuum flow (NL/s)2.4Maximum Vacuum leve l(-Kpa)84Air comsuption (NL/S)1.5~2.2Working temperature (ºC)-5~50Size (mm)94×78×30Noise level  (dba)57-68Vacuum port sizeG3/8*Net Weight (g)370Vacuum sensorPNP/NPNSolenoid ValveNC/NOProduct Applications:---Integrated vacuum generator for handling airtight and slightly breathable workpieces;---For robotic handling applications and on linear axes;---Pick and place applications with short beat times;---For systems requiring highly dynamic gripping of workpieces and where space is limited;---Typically used for fully automated small part handling;---Application industries are mainly 3C electronics, new energy (lithium-ion photovoltaic), and semiconductor closure testing.  Shipping & Payment:Company Profile:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
