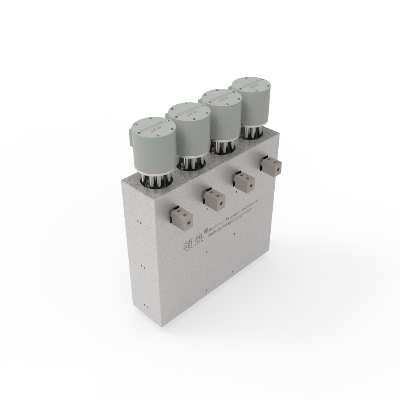

Industrial oil heater, heat is generated by the oil immersed
electric heating elements and transmission, using oil as medium,
using circulating pump, forced oil for liquid circulation, transfer
of heat to use one or multiple heat equipment, after unloading with
thermal equipment, again through the circulating pump, back to the
heater, then absorb heat, heat to use equipment, so the cycle,
realize the continuous transmission of heat, The temperature of the
heated object is increased to meet the requirements of the heating
process.Product performance and features:1. It can obtain higher
working temperature under lower operating pressure, reduce the
pressure level of thermal equipment, and improve the safety of the
system.2, uniform heating and flexible, temperature adjustment
using PID self-tuning intelligent control, temperature control
precision ≤±1ºC, can meet the strict requirements of high process
standards.3, small size, less occupation, can be installed near the
use of heat equipment, can reduce equipment investment and
operation costs, quick investment return.Application fieldPetroleum
and chemical industry: polymerization, condensation, distillation,
melting, dehydration, forced insulation.Oil industry: fatty acid
distillation, oil decomposition, concentration, esterification,
vacuum deodorization, reaction kettle temperature control, reaction
kettle heating.Synthetic fiber industry: polymerization, melting,
spinning, extension, drying.Textile printing and dyeing work: heat
setting roller heating, drying room heating, heat capacity
dyeing.Nonwovens: non-woven fabrics.Feed industry: drying.Plastics
and rubber industry: hot pressing, rolling, extrusion,
vulcanization molding.Paper industry: dry, corrugated paper
processing.Wood industry: plywood, fiberboard pressure forming,
laminate heating, hot pressing plate heating, oil press temperature
control, wood drying.Building materials: drywall drying, asphalt
heating, maintenance of concrete members.Machinery industry: spray
paint, printing drying.Food industry: oven heating, sandwich pot
heating.Air conditioning industry: industrial plant and civil
building heating.Road construction industry: asphalt melting, heat
preservation.Pharmaceutical industry: drying. Light industry: ink
production, washing powder. ModelXL-SAE
4-380/5Power(KW)20Voltage(V)380Wiring
Form Frequency(Hz)50/60Cold Insulation Resistance(Ω)≥5Wiring
Group1Over-temperature Protection Switch (yes/no)YesTotal
Current(A)30.39 Per Group Current(A)30.39 Interphase
Resistance(Ω)14.44 Surface Load(W/in²)10.25 Heating
MediumLubricating OilMaterial of Heating TubeS30408Standard of
FlangeSAE J518CMaterial of Flange304Design
Pressure(Mpa)1.6Operating Pressure(Mpa)1.6Design
Tempreture(ºC)150Operating temperature(ºC)120Protection
GradeIP55Explosion-proof Grade/Design StandardsJB/T
2379-2016Heating Tube Diameter(mm)12Length of Heating Tubes Under
The Flange(mm)500Cold Zone Length of Heating Tubes Under The
Flange(mm)80Center Distance of Heating Tube(mm)40Quantity of
Heating Tubes(Piece)6/* March 10, 2023 17:59:20
