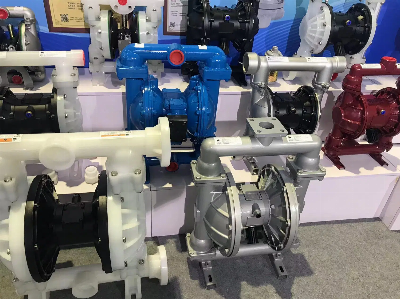

Product DescriptionMK Series Air Operated Double Diaphragm
Pneumatic Membrane PumpAir operated diaphragm pump is a new type of
conveyor machinery, adopts compressed air as power source, suitable
for various corrosive liquid, with particles liquid, high viscosity
and volatile, inflammable, poisonous liquid. The main
characteristic of this pump is no priming water needed, can pumping
the medium that easy to transport. High suction head, adjustable
delivery head, fire and explosion proof.Working Principle In the
two symmetrical pump chamber equipped with a diaphragm, which is
connected by a center couplet stem. Compressed air comes in from
pump inlet valve, and enter into one cavity, push the diaphragm
movement, and gases emitted from another cavity. Once to the
destination, gas distribution components will automatically
compressed air into another chamber, push the diaphragm to the
opposite direction, thus make two diaphragm continuous
synchronization to reciprocating movement. Compressed air goes into
the valve, make the diaphragm to the right movement, and chamber
suction make medium enter into, push the ball into the room, ball
valve shuts down due to inhalation, Mediums discharged by
extrusion, and opened the ball valve and at the same time close the
ball valve, prevent back flow, thus to make medium ceaseless from
the entrance inhaled, exit eduction.Main Advantages 1, Due to the
use of air power, the flow automatically changed according to
export resistance. Which is suitable for highviscosity fluid.2, In
inflammable and explosive environment, the pump is reliable and low
cost, won't produce spark and not overheat,3, The pump volume is
small, easy to move, no foundation needed, convenient installation
and economy. Can be used as mobileconveying pump.4, Where there are
dangers, corrosive materials processing, diaphragm pump can be
separated completely with outside.5, The pump shearing force is
low, physical effect to medium is small, can be used for conveying
unstable chemistry fluid.
Product Parameters
MK15 Diaphragm Pump Technical
SpecificationsSuction Lift Dry 4m; Wet 7.6m; Max. Particles
Diameter 2.5mm Suction Diameter 1/2inch Discharge Diameter 3/4inch
Air Inlet Size 3/8" Max. Flow 57l/min Max. Head 84m Max. Air
Pressure 8.4bar CertificationsPackaging
& ShippingPacking Details : One pump in
One plywood caseDelivery Details : 30 days after order
confirmation Export Wooden Case with ISPMStandard
fumigated wooden case, with ISPM stamp on it.Company
ProfileShanghai Suoto Pump Industrial Co., Ltd. is
a professional pump manufacturer integrating R&D,
manufacturing, sales and service as a whole, which has been
certified by ISO9001 international quality management
system. Located in Langxia Industrial Park, Shanghai, Suoto
Pump Industrial possesses two manufacturing bases in Shanghai and
Zhejiang. Since our inception, Suoto Pump Industrial has been
committed to the innovation and development of various pumps. Our
leading products include self-priming trash pump, centrifugal pump,
submersible pump, diaphragm pump, vacuum pump, diesel pump, fire
pump, etc.Production ProcessFAQQ: What type of company SUOTO
is? A: SUOTO is a manufacture and trading company, has
factories in Shanghai and Zhejiang, with export and import
license.Q: What kinds of pumps do you supply?A: Our products
including self-priming trash pump, centrifugal pump, diaphragm
pump, submersible pump, chemical pump, oil pump, diesel pump, fire
fighting pump, etc.Q: What is your payment terms?A: Alibaba Trade
Assurance, Western Union, Paypal, T/T, L/C, etc.Q: Can you provide
OEM, ODM service?A: Yes. We have factories in Shanghai and
Zhejiang, we can make products according to your requirements.Q:
Why should we buy from you?A: We are committed to provide best
quality products at minimum delivery time and competitive price. We
believe this is what customer wants. We are satified until
customers are.Q: What is your warranty period?A: We provide one
year of unconditional warranty on our products for the
manufacturing defects.Q: What about delivery time?A: Normally our
production time is within two weeks. Please confirm before order./*
