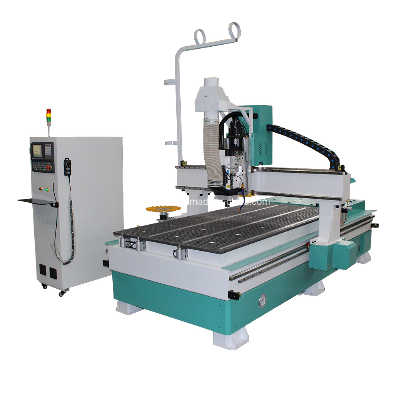

1325 ATC CNC Router Machine for Woodworking Furniture
Doors/CabinetsFeatures1.Whole machine is welded by strong steel
structure, with tempering aging treatment, no distortion, long
time using.2. Disc type auto tool changer system, total 12 pcs
bits in the tool magazine, only 8 seconds to change bits, can
change the needed bits intelligently, saving bits changing time,
improving efficiency. 3. SYNTEC 6MB Taiwan high
performance industrial control system, intelligent controlling, has
the protection function for beyond the working table, avoiding the
mechanical collision due to the larger designed layout. Intelligent
control the speed, can control the processing speed severally,
truly improve the processing efficiency and lengthen the tools life
time, increase the rate of finished products. Can do multi layer 3D
processing, fast and smooth do three-dimensional processing,
engraving and cutting. Separates control keyboard
operation: brief, convenient and easy to learn, great
independence.SYNTEC MPG handwheel, conveniet
operating.4. Adopted with famous China HQD 9.0KW
ATC air cooling spindle, high precision, low noise, high RPM,
long life time , and stable moving. 5. Indpendent SYNTEC
control cabinet with famous brand electronic parts.6.Famouns Fuling
brand 11KW inverter, for spindle muti-speed
adjusting. 7. Powerful Yaskawa Japan 850W servo motor and
driver for XYZ-axis, suitable all kinds of heavy solid wood
engraving and cutting, high precision and fast speed.8. Japan
Shimpo Reducer for servo motor, used for replace traditional
rack and belt,to make machine more powerful and
stable. 9. Linear square guide rail, Hiwin, Taiwan, dia
30mm for XYZ-axis, double raw four columns, good weight
capacity, stable moving and ensuring the precision. 10.Vacuum
adsorption and dust collection system: vacuum adsorption
table, adopted bakelite table, high density, no deformation
and high adsorption, can for different size materials adsorption,
saving time compared the traditional mechanical plate fixing, the
vacuum pump is 5.5kw air cooling type to solve water cooling vacuum
pump changing water issue in the frigid weather.With feeding wheels
on the back of machine, convenient for heavy materials
loading.Dust collector helps to suck the dust, milling
dust, saw dust during processing, keeping the working table
cleaning and ensuring the machine long time using. 11.
With oil mist coolign device when processing
alumimum/metal work pirece, impproving engraving cutting
precision. 12.Precisioin auto tool calibration, more
convenient for each time Z-axis 0 point setting 13.Auto
lubrication system more convenient for
maintenance. 14.Advanced file processing
function, can timely correct faults, and good compatibility
forType3/Artcam/Mastercam/Caxa such file. Advanced three
dimensional curve forcast algorithm, stable broken line, ensuring
the curve moving speed & precision.15. Memory function after
power failure and break point, can auto back to zero point and
correct the faults, ensuring the precision for long time working
and saving materials. Technical ParametersEffective working
area1300(X)mm*2500(Y)mm*300(Z)mmMaterialsStrong steel pipe welded
structureWorking tableVacuum table with aluminum T slot working
tableMoving typeGantry movingGuide railLinear square guide rail (
Hiwin, Taiwan, dia 30mm)TransmissionHelical rack &pinion for X
Y -axis, Lead ball screw for Z-axisDriving modeYaskawa 850W servo
motor and driver for XYZ-axisSpindle motor9.0KW China HQD ATC air
cooling spindle(ISO30)Spindle speed0-18000rpmTools changing
method& changing abilityDisc auto tool changer.12
pcsInverterDeltaVoltageAC 380V/220V ±10%, 50/60Hz, three
phasesMaximum traveling speed60000-800000mm/minMaximum engraving
speed25000-40000mm/minMachine accuracy0.01mmControl systemSYNTEC
6MB control system( Taiwan)Hand wheelSYNTEC HPG( hand pulse
generator)Suitable softwareArtcam, Type3, Ucancam V9,etcCarving
InstructionsG code *Uoo *mmg *plt HPGLRunning environment
temperature0-45 ºCRelative humidity30%-75%Dedusting deviceDust
collector, 5.5kwCooling deviceOil mist coolingLubrication
systemAutomaticTool calibrationAutoCertificateCEReference working
videos:https://upgoalcnc.en.made-in-china.comApplicationWoodworking
industry: three-dimensional waved plate, cabinet door, craft door,
overlaid wood composite door, screen, solid wood door, craft
casement window, etc, such furniture product milling and engraving,
also for shoe-cleaning machine, game machine cabinet and panel,
mahjong table, computer table and auxiliary processing of panel
furniture,mainly used for cabinet door, solid wood furniture, also
can for MDF cutting & processing.Working Samples
