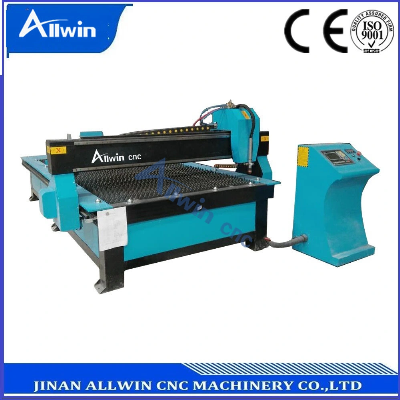

Stainless steel cutting machineFeatures of CNC plasma cutter for
aluminum, stainless steel: 1. Welded structure of thickening square
tube, together with Taiwan imported guide rail to ensure running
speed and accuracy. 2. Hypertherm plasma power supply together with
high sensitive arc pressure adjuster. Self-adjusting can choose the
best distance between plasma gun and working piece automatically to
ensure high accuracy cutting.3. CNC plasma cutting for aluminum,
stainless steel use STARFIRE control system with FastCAM software
for auto material saving function, large capacity storing function,
convenient to read and process.4. Cutting head with cooling system
can quickly cool surface of material to avoid burr and residue.5.
Overall stepper motor with high precision rack and pinion, to
ensure the cnc plasma machine has small noise,smooth, precise
coordinates of the mobile performance.6.Perfect software
compatibility, such as Ucancam,Type 3, Artcum,etc. Original source
from Service. We have 10 experienced engineers and 1 technical
online customer service to supply 18-hour online service. If you
have any problems, we can solve them online via skype and
whatsappB.Also, remote control service via the software Team Viewer
is provided for the customer to install the software and adjust the
program. NameTALBE PLASMA CUTTING MACHINE 1530Working
Area(X*Y)1500MMX3000MMFrameSquare tube Integral guideX Y Z
RailTaiwan HIWIN Linear guideTransmissionX/Y rack and pinion
drive,Z Taiwan TBI Ball ScrewMotor driverJapan Panasonic Motor
driver Control SystemStart controller with THC functionCutting
Thickness0.5mm-22mm stainless steelPlasma Power Supply160A plasma
generatorWorking Speed8000mm/minWorking
Voltage380V,3PH,50/60HZSoftwareARTCAM/Type 3/UcancamOption for
Plasma source USA Hypertherm Power: 45A, 65A, 85A, 105A, 125A,
200AChinese Huayuan Power: 63A, 100A, 120A, 160A, 200A Different
cnc plasma power supply cutting capacity: 1. Chinese Huayuan
Power: 63A cutting thickness: 0-8mm100A cutting thickness:
0-15mm160A cutting thickness: 0-20mm200A cutting thickness:
0-30mm USA Hypertherm power 65A cutting thickness:
0-12mm85A cutting thickness: 0-16mm105A cutting thickness:
0-18mm125A cutting thickness: 0-20mm200A cutting thickness:
0-30mm PARTS FOR PLASMA CUTTING MACHINE FOR REFERENCE.
FAQ for CNC plasma cutting table:Q: Do you have after-sale service
and support?A: Yes, we are happy to give advice and we also have
skilled technicians available across the world. We need your
machines running in order to keep your business running.Q: I am not
sure if this CNC plasma cutting machine suitable for my work?A:
Don't worry, just tell me your working materials, max working area
and cutting thickness, then I will recommend you the most suitable
machine for you.Q: What other things also need after we bought your
CNC plasma cutting machines?A: With plasma cutting: need plasma
power source and air compressor. You can match plasma power supply
by yourself, or buy together with the cutter from us, it's
optional. If you buy from us, we will connect the wires of plasma
power source and CNC plasma cutting machine together, then more
conveniently to use.Q: How can I do if the machine goes wrong?A: If
confronted with such problems, online service is offered, you could
contact our sales. Also, we offer engineer delivery service. Please
contact us ASAP and don't try to fix the machine by yourself or
someone else. We will response as soon as we can to solve it for
