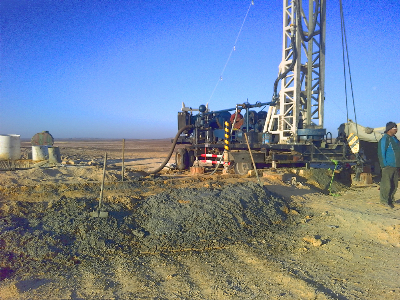

Product DescriptionDBZT600 drilling rig is equipped with
a special trailer chassis and works with an independent diesel
generator, mud pump, double hoist unit, rotary table, drilling
tower, and other parts. It can be pulled by a tractor or car
tractor. The drill tower is a K-shaped truss structure with
good stability and large bearing capacity. It is suitable for
high-rise buildings, bridges, geological mines, ports, dam
foundations, well construction, and complex ground source heat pump
drilling construction. It is the best choice for users with simple
operation, strong usability, easy maintenance, less investment, and
quick effect. Detailed Photos 1. The DBZT600 trailer
well drilling machine is designed by our engineers; it is mounted
on a trailer and is a rotary drilling machine.2. The
drilling rig is a directional circulating rotary drilling rig
equipped with a BW850/2A mud pump. It uses mud as
a flushing fluid, and if equipped with a good drill bit,
it can drill holes in clay, sand and rock.3. The power of the
drilling rig comes from the diesel generator set; the drilling rig
is equipped with distribution equipment and hydraulic system. The
drilling rig has three motors, and the power is transmitted to the
transmission system, mud pump and hydraulic system respectively.4.
The main drive of the drilling rig is mechanical, and the four
jacks and masts are hydraulic. The distribution box, sewage pump
and main drive clutch system are all pneumatic.5. The appearance of
the drilling rig is beautiful. The turntable has large torque and
high efficiency, and is mainly used for basic work such as water
wells, buildings, national defense building foundations, geological
exploration, and geothermal wells. Well received by domestic and
foreign customers. Product Parameters TECHNICAL
PARAMETERMachine modelDBZT600 trailer water well drilling
machineDrill depth600mHole diameter500mTurntable hole
diameter500mmTurntable speed38, 57, 85 rpmTorque of turntable13.8,
8.2, 6.2KnmMain hoist lifting power40KnAssistant hoist lifting
power30knHeight of mastshort mast12mlong mast15mSwivelMax
Load30TInner diameter63.5mmKellyShort mast108x108x7500mmLong
mast108x108x10500mmDrill rodShort mast89x10x5500mmLong
mast89x10x9000mmWorking sizeShort mast15100x2480x14170mmLong
mast15100x2480x17170mmGeneratorModelSCGC-200KW diesel generating
setRated voltage400VRated current360AFrequency50HzMud
pumpModel3NB-130Flow8.4-16.6 L/sRated pressure5-10MpaInput
speed565r/minPower90kwGear oil pumpModelCB-E532FFlow32ml/rRated
pressure20MpaHigh pressure25MpaPower11kwPackaging
& Shipping Customer cases
Company ProfileJinan Duobo Intelligent Technology Co., Ltd. is
a large-scale professional manufacturer of high, medium, and
low wind pressure DTH drilling rigs and water well drilling rigs in
Shandong Province. Products include more than 50 kinds of
6 series. The main products are KQZ series DTH drilling rigs,
follow-up pipe series, FY series water well drilling rigs, high,
medium, and low wind pressure engineering drilling rigs, etc.The
company has been committed to the professional production of water
well drilling rigs and down-the-hole drilling rigs and the sales
and maintenance of drilling tools and air compressors for more than
20 years. Accumulated a wealth of professional maintenance
technology and thoughtful and meticulous after-sales service
experience. It has accumulated a large amount of usage data
through extensive contacts with users.The company independently
developed a new generation of water well drilling rigs and
obtained a number of national patents. This series of products
have the characteristics of standardized configuration, compact and
reasonable structure, fast drilling speed, economical and
durability, and low failure rate. Once launched, it has been
recognized by the market and is widely used in mining engineering
construction, civil drilling, geothermal drilling, and other
fields. The comprehensive cost performance of this series of
products is leading and has won a good reputation in the
market, becoming the first choice of users everywhere.The company
always stands on the user's point of view, pays attention to user
needs, implements quality standards, makes "DUOBO" brand series
drilling rigs closer to user needs, and forms the market management
concept of "user needs, DUOBO pursuit". The company always firmly
believes that "the market is the only standard.Other
product FAQ1. Q: What kind of terms of payment can be
accepted?A: Normally we can work on T/T or L/C.2. Q: Which
incoterms 2010 terms can we work?A: Normally we work on FOB, CFR,
CIF, EXW, DDU.3. Q: What about the delivery time?A:7 days after
receiving the deposit.4. Q: What about the warranty time?A:12
months after shipment, the engine is 6 months.5. Q: What about
the Minimum Order Quantity?A: The MOQ is 1 set.6. Q: Could you
stick customers' brands on the products?A: We warmly welcome the
OEM orders.If you don't know how to choose a suitable one,
please send u
