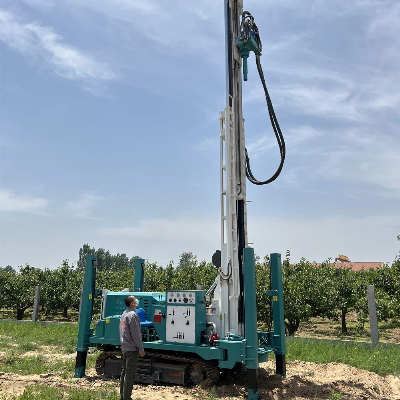

Hanfa Crawler Borehole Water Well Portable Truck Small Drilling Price Rig

  Product Description1.Drilling depth can reach 460m2.Steels quality is good, torque is large3.Easy operation, free-maintaining4.For various complex strutam, such as pebble bed, aggregate bed.5.Saving money, compact construction, easy moving6. Applicable to industry, residents drilling, ground drilling, large diameter, deep drilling, footage fast, flexible and efficient. Product ParametersModelHFJ220AHFJ260AHFJ360AHFJ460AHFJ560AMax. Drilling depth220m260m360m460m560mDrilling diameter90-254mm90-315mm105-325mm105-350mm105-350mmWorking air pressure1.05-2.46Mpa1.7-3.0Mpa1.05-3.45Mpa1.05-3.45Mpa1.05-4.5MpaAir consumption16-30m³/min17-35m3/min16-55m3/min16-55m3/min16-60m3/minDrilling rod length3m3m3m/4.5m/6m3m/4.5m/6m3m/4.5m/6mDrilling rod diameter76/89mm76/89mm89/102mm89/102mm89/102/114mmAxle pressure4T4T4T10T12TLifting force12T14T20T24T28TLifting speed2.5m/min2.5m/min3.0m/min3.0m/min3.0m/minPulling speed0.5-5m/min0.5-5m/min0.5-5m/min0.5-5m/min0.5-5m/minFast lifting speed18m/min18m/min30m/min25m/min25m/minFast pulling speed35m/min35m/min50m/min40m/min40m/minMax. rotation torque4200-5600Nm4500-6500Nm6500-8500Nm7500-9500Nm8500-11000NmRotation speed48-70r/min50-70r/min60-100r/min45-120r/min75-150r/minMud pump flow20L/min(optional)20L/min(optional)20L/min(optional)20L/min(optional)20L/min(optional)High hydraulic leg stroke1.5m1.5m1.5m1.5m1.5mWalking speed2.5Km/h2Km/h3.5Km/h3.5Km/h3.5Km/hClimbing capacity30°30°30°30°30°Weight4.7t5.4t8.5T10.5t11.5TDimension3600*1700*2150mm3900*1700*2150mm4800*2000*2450mm5700*2000*2550mm5800*2250*2550mmPower55 kw77 kw93KW93KW(6 cylinder)153kwCompany Profile  FAQ1. Are you a trading company or a manufacturer?We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.2. How is the quality of your machine?Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.3. How to inspect the goods?1) Support customers to come to the factory for on-site inspection.2) Support customers to designate third-party companies to inspect goods.3) Support video inspection.4. Do you have after-sales service?Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.5. How about quality assurance?We provide a one-year quality guarantee for the main machine of the machine.6. How long is your delivery cycle?1) In the case of stock, we can deliver the machine within 7 days.2) Under standard production, we can deliver the machine within 15-20 days.3) In the case of customization, we can deliver the machine within 20-25 days./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
