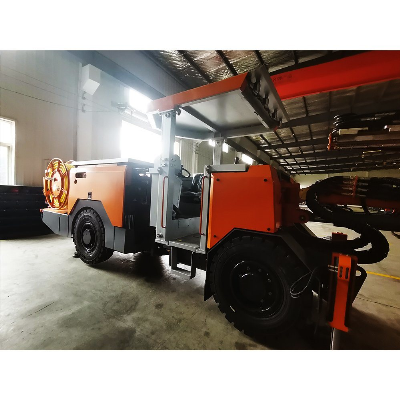

UJ33 underground drilling jumbo for highway, railway and other
large-scale tunnel excavation,anchor construction,equipped with
three heavy drilling booms and a service platform, all-round
high standard configuration to meet the different needs of
customers.1. With a number of patents, the top of the line
hydraulic system, control and protection design better
maneuverability, more stable and reliable.2. FOPS certified safe
roof canopy for better operator vision angel, LED panel lighting
system, for operator to see better, to prevent faulty operation.3.
Equipped with eagle boom lift system, height coverage up to 13.2 m,
to meet both the domestic and global large-scale tunnel operation
requirements.4. Heavy-duty steel chassis and +38/50 ° large
steering angle design for convenient and flexible steering and
job site transfer, and better load capacity and
more stable operation. ZEGA UJ33 Main Tehnical
SpecificationsHole range45 - 89 mmNumbers of booms3 + 1Drill rod
sizeT38-H35-R32 / 5525 mmService platform ratedload400 kgFeed beam
length5500 mmWorking Voltage380 VDrifter modelZY104MCable reel
capacity100 mPercussion power20 kWWater hose reel capacity100
mDiesel engineCummins QSC8.3-C240Tramming speed17 / 10 / 5
km/hDiesel engine power179 kW @ 2200 rpmClimbing ability15°Electric
moto power55 kW x 3Turning radiusIN R6500 mm / OUT R12100 mmWater
pump pressure17.5 barWorking face dimensions: Width x Height
(m)16.3 x 13.2 mWater pump displacement18 m3/hMax.working area180
m2Air compressor pressure8 barDimensions17092 x 2930 x 3159/3859
mmAir compressor F.A.D1 m3/minTotal weight50000 kg/* March 10, 2023
