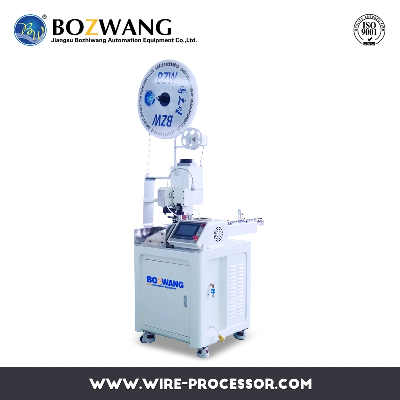

BZW-1.0 Automatic
single end terminal crimping machine1.PLC control system, automatic
wire cutting, one end crimping and one end twisting;2.High precise
Italy BGM frequency motor control, low working noise, long service
life, and stable tensile force; 3.Touching screen
operation; Stripping length, cutting depth, crimping position are
digital imputed; 4.Quick process to replace materials; fully
digital debugging. Convenient maintenance;5.Efficient stepping
drive, high precision and speed. High cost performance.
TECHNICAL PARAMETERWire range 0.3-2.5
mm²(AWG12#-AWG28#)Cutting length 45mm~10000 mm(Other size can
be special ordered)Cutting precision ±(0.2%*L+1)mmStripping
length 1.5-10mm(Other size can be special ordered)Feeding
speed Max. 6.0 m/s Capacity 4500 pcs/h (within
length 100mm)Crimping force 20KNVoltage AC 220V
50HZ Motor 1.2KWAir supply 0.5
Mpa-0.7Mpa,6m³/hWeight about 200kgDimension 650 x
700 x 1500mmFunction single end half stripping, single end
crimpingDetecting ability wire knotting, wire lacking,
terminal lacking and air pressure detectingApplicator
range Stroke 30mm (40mm stoke can be special ordered)
Jiangsu Bozhiwang Automation Equipment Co., Ltd. is a
large-scale intelligent wire processing equipment manufacturer
in China,located in the center of the beautiful and rich Yangtze
River Delta---China's famous industrial equipment
manufacturing base Changzhou City, Jiangsu Province.
The company covers an area of 40,000 square meters
and a building area of 45,000 square meters with more than 400
employees,including more than 300 outstanding technicians. The
company has successively passed ISO9001, QS-9000, CE
certification, TUV certification, and developed a number of
products with independent intellectual property rights, and
obtained more than 60 invention patents, more than 100 utility
model patents and 100 new appearance patents, the technology
and comprehensive strength of product research and development
ranks the top among the nationwide. In the
production process, the company strictly follows the ISO:9001
quality standard for daily production and management. It
mainly focuses on the automotive, photovoltaic and new
energy industries and has developed and produced a series of
automatic processing equipment withhigh quality, stable
performance and high efficiency. Mainly include
automotive wiring harness/HSD/FAKRA radio frequency wire
harness/new energy wiring harness and other related
semi-automatic and fully automatic intelligent production
lines, automatic double ends terminal machine with seal
inserting, automatic ribbon cable terminal machine, automatic
single-double-end terminal crimping machine, automatic wire
stripping machine,JB box automation equipment, new energy
automation equipment, and a complete set of equipment series
for various semi-automatic wire harness processing. With the
increasing annual output of the company, it has reached an
annual output of more than 20,000 sets of intelligent assembly
lines and various wire harness processing equipment, and the
production equipment has the characteristics of high
precision, high degree of automation, and strong supporting
