We can supply complete solutions for the carbonated production
plant, including a Water treatment system / Bottle making machine /
Carbonated Drink Processing System / Washing filling capping 3 in 1
machine / Date printing machine / Automatic labeling machine /
Automatic packing machine / Automatic Palletizer system, our sales
team will help you learn about whole water plant and provide you

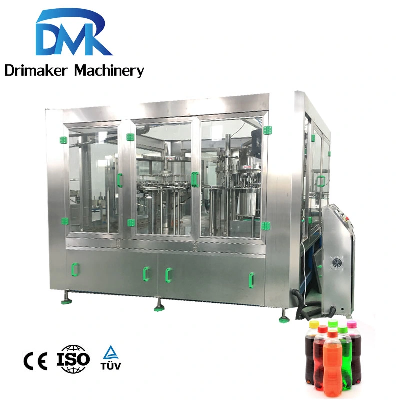

factory price for machines. Product Description DCGF PET
bottle carbonated beverage filling machine adopts the bottleneck
drive technology to realize automatic bottle rinsing, filling,
capping, and other working steps, which have a high degree of
automation.This model carbonated filling machine is equipped with
accurate CO2 pressure control, and a stable liquid level control
system to ensure carbonated drink production. Multiple
protection, and alarm devices such as jammed bottles, missing
bottles, missing caps, and overloads, these systems provide the
quality of products and also a safe production process. It has
the advantages of high reliability, high efficiency, and simple
operation. The carbonated beverage filling machine and the material
contact parts are made of stainless steel, have health
characteristics, and are easy to clean.Detailed
Introduction Empty bottle washing:This part of the machine is
used to wash empty bottles with water spray, it uses purified water
to wash the bottle's inner surface at a particular angle. It makes
the bottle before filling clean, in line with health standards, to
prevent bacteria, sediment, and other harmful substances. The
rotary plate, washing head, clips...etc, these parts of the bottle
washing station are made of SUS304 stainless steel. After
washing, used flushing water will be collected and discharged
uniformly. Liquid filling:The carbonated beverage filling
machine adopts iso-pressure (iso-barometric) filling technology is
adopted enabling it to fill more efficiently and more stably with
more output than the machine of the same level from others.
The isostatic filling machine generally maintains a certain
filling pressure in the storage tank. When the container to
be filled enters the filling machine, the container is first
Inflated. When the pressure in the container and the pressure
in the storage tank are the same, the self-weight of the liquid is
filled through the open filling valve. During the filling
process, the gas in the container is smoothly exported and returned
to the storage tank or to the gas chamber. Cap screwing:The
capping machine is the final step and an important part of the
water bottling machine, combined with the cap lifting system, the
capping station will transfer caps on bottles, and then finish cap
screwing work, which has an enormous influence on the defective
rate of the product.Made of stainless steel material to make this
machine parts, the capping station can ensure stable running works
and the electric detecting system can make sure no bottles and no
capping, to reduce cap waste. Features of carbonated filling
machine:1. Using the wind-sent access and move wheel in the bottle
directly connected technology; canceled screw and conveyor chains,
enable the change the bottle-shaped become easier. 2. Bottles
transmission adopts clip bottleneck technology, bottle-shaped
transform does not need to adjust the equipment level, only change
related to the curved plate, wheel, and nylon parts is enough.3.
The specially designed stainless steel bottle washing machine clip
is solid and durable, with no touch with the screw location of the
bottle mouth to avoid secondary pollution. 4. High-speed large
gravity flow valve filling valve, filling fast, filling accurately,
and with no liquid loss. 5. Spiraling declines when output bottle,
transform bottle shape no need to adjust the height of conveyor
chains. 6. Host adopt advanced PLC automatic control technology,
the key electrical components from famous company such as Japan's
Mitsubishi, France, and OMRON.Technical
Parameter ModelDCGF12-12-5DCGF18-18-6DCGF24-24-8DCGF32-32-10DCGF40-40-12Production
capacity(500ml)
BPH2000-30004000-50007000-800009000-1100012000-14000Suitable
productcarbonated beverage, soft drink, soda, etc.Suitable bottle
typePET BottleSuitable bottle diameterφ50-φ110mmSuitable bottle
height160-320mmCompressed air0.3-0.7MPaRinsing
pressure>0.06MPa, ≤0.2MPaPower3.1KW3.1KW3.8KW5.6KW7.2KWDimension(L*W*H)2400*1600*24002400*1850*24003100*2200*24003600*2500*24004000*2800*2400Weight30004000450055008000Complete
Carbonated Drink Plant Turnkey Project Introduction We provide
the Complete plant turnkey project for pure water production line
from A to Z, which includes:1. Water purification System, (Getting
purified water for bottling)2.Bottle Blowing Machine,(Making
plastic bottles)3. Carbonated drink processing system(To produce
beverages and mix with CO2 gas)4.Air Conveyor,(Transport empty
bottles to filling machine)5.Water Filling Machine ,(Filling water
into bottles)6. Cap lifting machine,
