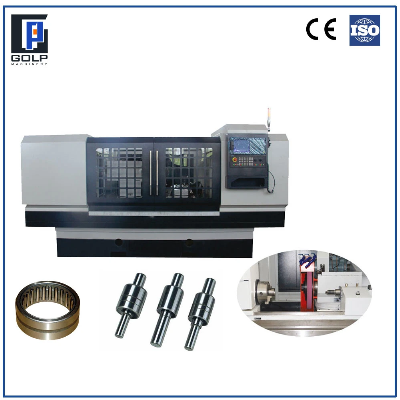

Δ. CNC cylindrical grinding machines are pre-programmed according
to the processing requirements and are processed by numerical
information commands from the control system, and are mainly used
for grinding cylindrical and conical external surfaces. CNC
cylindrical grinding machines are generally characterized by a high
degree of versatility and modularity, high precision, high
rigidity, high efficiency and high adaptability.Δ. Depending on the
type of CNC cylindrical grinding machines, they are suitable for
batch processing of parts related to the automotive, motorcycle,
air compressor, bearing, aviation, aerospace and other
industries. 1. The machine tool is a two axis (x-axis is
transverse feeding of grinding wheel frame and Z-axis is
longitudinal movement of worktable) two linkage CNC cylindrical
grinding machine. The CNC system adopts international or domestic
well-known brands. It has the functions of automatic feed, with
drawal, rough grinding, fine grinding, dressing of grinding wheel,
automatic compensation and so on.With optional automatic measuring
instrument, it can realize the full closed-loop function of
grinding cycle.2. The grinding wheel spindle adopts sleeve type or
dynamic and static pressure spindle, the grinding wheel frame guide
rail adopts steel guide rail, the worktable guide rail adopts
Flat-V plastic lubrication guide rail, and the servo motor ball
screw is used to drive the feed mechanism and the worktable to
move.CNC cylindrical grinding
machineNameLength500mm1000mm1500mmGrinding OD scope8-320mmTop
center height180mmLongitudinal movement distance of
worktable550mm1050mm1550mmRotating angle of worktable+4,-3°Moving
distance of grinding wheel frame200mmTaper of head and tail frame
topsMorse No.5Chuck diameter of head frame200 mmMove amount of tail
frame sleeve40 mmMax.Size of grinding wheel600*20- 60*305mmServo
motor power of X axis11nmServo motor power of Z axis20nmPositioning
accuracy of X/Z axis8umRepeat positioning accuracy of X/Z
axis2umMotor power of grinding wheel11 kwTotal power of
machine tool21.5kwWeight of machine tool7500kg8600kg9800kgSize of
machine
tool (mm)3700*2800*26004300*2800*27005200*2800*2800Processing
accuracy(standard specimen) Roundness0.002 mmCylindricity0.005
mmSurface roughnessRa0.32umWUXI GOLP CNC MACHINERY CO.,Ltd is
located in Wuxi--the core location of the Changjiang Delta which is
the most dynamic economy area in China. We are a new brand company
specializing in the CNC machine tool industry. The company is
mainly engaged in Die-casting machine, CNC Punching machines,
Powder compacting machine and other new intelligent machine and
related supporting products. The company adheres to the business
philosophy --Professional quality, Credibility first, Customer
first, and is committed to the development goal of becoming an
important member of the global market in the field of intelligent
machines.Q:What's your payment terms?A:T/T,L/C,Paypal,Western Union
etc.Q:How long is the product warranty?A: 24 monthsQ: Are you
a trading company or a manufacturer?A: We are a professional
manufacturer. Our products have been exported to Asia, South
America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?A: All our
products have passed ISO9001 and CE certifications. We have strict
quality inspection process before leaving our factory in order to
offer the best quality machines to our customers.Q: Do you have
after sales service?A: Yes, we have special service team which will
offer you professional guidance, or On-site installation in
customer Factory.Q: Do you test all your goods before delivery?A:
Yes, we have strict quality inspection process including a load
test for every machine before leaving our factory./* March 10, 2023
