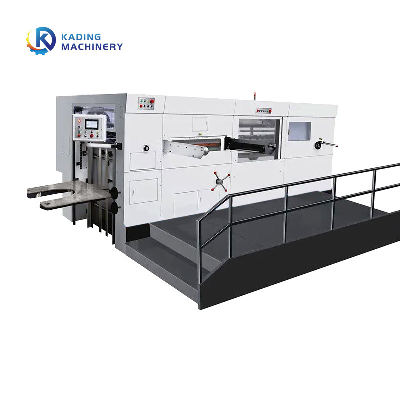

Semi-Automatic Cardboard Platform Die Cutting Punching Machine for Cardboard Boxes

Product DescriptionSemi-Automatic Cardboard Platform Flat Bed Vacuum Screen  Control Die Cutting for Corrugated Paper Board for Cutting MachineBMY1300/1500/1650/2000 semi-automatic die-cutting and creasing machine is professional equipment for cutting offset printing box. There have high strength gripper,advanced open gripper structure that suitable for variety of cardboard and corrugated board; Front, back and side gauge assure the cutting precision. It also has intermittent mechanism with high precision, sensitive pneumatic clutch, pneumatic lock plate , PLC and HMI. Working speed, production account, total running time are all displayed by digital.The machine's breakdown display makes troubleshooting operations very convenient. It adopts the frequency converter control main motor, stepless speed regulation, smooth operation. There are equipped with many protection sensors to ensure the worker's safety. What's more, the front and back pressure can be adjusted individually, manual running is very convenient, die-cutting without clipper margin can be realized.Product Parameters ModelBMY-1300BMY-1500BMY-1650BMY-2000Max.paper size1320X980mm1510x1120mm1670x1200mm2000x1600mmMin.paper size350x450mm450x500mm500x550mm600x600mmMax.Die cutting size1300x960mm1490x1100mm1650x1180mm1970x1570mmMin.gripper edge size8mm8mm8mm10mmMax.Die-cutting pressure 350N/cm²380N/cm²400N/cm²500N/cm²Cardboard200-2000g/m2200-2000g/m2200-2000g/m2200-2000g/m2Corrugated paper10mm(Max.thickness)10mm(Max.thickness)10mm(Max.thickness)10mm(Max.thickness)Max.Die-cutting speed5000pcs/h5000pcs/h4200pcs/h3800pcs/hMax.Feeding pile height1400mm1400mm1400mm1400mmMax.Collecting pile height1250mm1250mm1300mm1300mmTotal power13.5kw13.5kw20kw23kwWeight14.5T18T21T25TDimensions4200x4250x2250mm4200x4300x2250mm5200x4900x2250mm6500x5050x2400mmDetailed Photos               DIE CUTTING PART&ELECTRIC PART1.The operation of die cutting part equipped with safety window and pneumatic locking system;2.Air floation device makes the pull out and push in of die cutting plate be more easily.3.The main electric parts are all world-renowned brands.            PNEUMATIC CLUTCH&MAIN CHAIN DRIVE1.Kading semi automatic die cutting and creasing machine adopts imported pneumatic clutch, with advantages like long service life, low noise, brake quickly with strong driving force. It is installed according to European exported standard.2.The main IWIS chain is imported from Britain that has a minimum error of length, high tensile and more wear-resistance.      Semi-Automatic Cardboard Platform Flat Bed Vacuum Screen  Control Die Cutting for Corrugated Paper Board for Cutting MachineCangzhou Kading Carton Machinery Manufacturing Co.,Ltd was founded in 2004 and is located in Dongguang County, Cangzhou City, Hebei Province. We are a manufacturing enterprise that produces carton making machinery.Our company's self-produced product lines include carton printing machines, carton die-cutting machines, and carton slotting machines; our advantageous products include Carton stitching machines, Folder gluer machines, Flute laminating machines, Single facer machines, etc.After nearly twenty years of sales and production experience, our product supply chain is already very mature, so we can help customers one-stop purchasing.In addition to our own foreign trade business, our factory also cooperates with many trading companies, so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and the European Union, and are well received by the majority. There are also many brand&branded manufacturers among our customers. You are welcome to cooperate with us~!Q: Are you a factory or a trading company?A: We are a direct carton making machine manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you'd like an online factory tour.Q: How do you ensure your quality?A: 1. Trustworthy and long-term cooperative raw material suppliers;2. Skilled&experienced engineer&workers;3. Mature QC system;4. Specially-assigned merchandiser;5. Advanced production workshop.Q: How about your after-sale service?A: 1. Special after-sale team will be 24/7 online;2. Can guide the installation door-to-door;3. One-year warranty for spare parts./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
