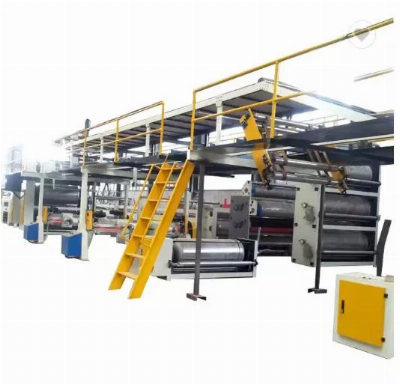

type:WJ150-1800-ii type five layer corrugated paperboard
production line:1Effective width1800mm2Design produce
speed150m/min3Three layer work speed100-140m/min4Five layer work
speed90-130m/min5Seven layer work speed-------------------6The
highest change single speed100m/min7Longitudinal separation
accuracy±1mm8Cross-cutting precision±1mmnoteSpeed the above
targets required to achieve:effective width1800mm,Comply with
the following standards and ensure the paper's equipment condition
175 ºC heating surface temperature.Top paper
index100g/m2--180g/m2 Ring crush index(N.m/g)≥8
(Water containing8-10%)Core paper
index80g/m2--160g/m2Ring crush index(N.m/g)≥5.5 (Water
containing8-10%)In paper index90g/m2--160g/m2 Ring
crush index(N.m/g)≥6 (Water
containing8-10%)9Flute combination 10Steam
requirementThe maximum pressure 16kg/cm2Common
pressure10-12kg/cm2use4000kg/Hr11Electricity demandAC380V 50Hz
3PHTotal power≈220KWRunning Power≈150KW12Compressed airThe maximum
pressure 9kg/cm2Common
pressure4-8kg/cm2use1m3/min13space≈Lmin70m*Wmin10m*Hmin5m(The
actual drawing to provider to provide audited prevail)
Customer-owned section 1, steam heating system:proposal with
4000Kg / Hr of a steam boiler pressure:1.25Mpa
steam pipeline. 2, air compressed
machine,air pipeline,glue conveying pipe.3, power supply,wires
connected to the operation panel and line pipe.4, water
sources,water pipelines,buckets and so on.5, Water, electricity,
gas flush mounting civil foundation.6, Test with the base
paper,corn starch (potato),Industrial use caustic
soda,borax and other material. 7, Oil
equipment,lubricating oil,hydraulic oil,lubricating grease.8,
installation,commissioning of food, accommodation.And provide
installers with the installation. fingerless type single
facerstructural feature:★adopt hood suction structure,matched high
pressure powerful fan. Gas supply and electrical control cabinet to
focus on the same operation, the operating side full cover
closed.★High quality resin sand casting,wall thickness 200mm.Adopt
independent gear box, Universal joint transmission
structure.★install the lifting trolley on the conveyor bridge,Need
to use the car will tile roll assembly and pressure roller, such as
convenient and quick.★Glue roller unit structure with the overall
relocation,Maintenance can sway the machine at the overall
maintenance,improve the working efficiency.★The humidity control
apparatus equipped with a spray, so flute type to maintain good
stability of deformation, avoid dry.★Automatic circulation system
for glue, two-cylinder pneumatic gluing device, with good
cushioning effect.★Glue department using integrated slide
structure,Glue roller surface after grinding engraved with 25 lines
and pit-style textured hard chrome plating.★corrugated roller adopt
tungsten carbide dealing,diameter of the main corrugated roller¢
320mm,Quenched→rough car→bore fine boring→shaft head
shrunk-on→welding → tempering to stress→fine cars→coarse
grinding→IF quenching→CNC grinding machine grinding→Hard chrome
plating,hardness of surface is HRC58degrees.★Active force variable
frequency motor drive, energy efficient, low failure rate.★Glue
wide electric adjust to changes in the width of the paper
used.★Amount of glue size with electric adjustment, touch screen
display and operation of the encoder transmission coating gap, high
accuracy.★Power and operating parts with a safety net to ensure the
safety of personnel in the operation of
machinery. double
facerStructural features:★Heating plate surface by grinding
treatment,hot plate width600mm,a total of 16 pieces heating
plate,Cooling stereotypes Department 4 m.Preheat board is made of
contacts board, in accordance with the national standard
of pressure container, enclosed the pressure container certificate
and inspection certificate.★Hot plate using the touch plate design
structure. Plate movements using pneumatic spring-type
structure.★On both sides about conveyor belt deviation adjustment
adopts automatic adjustment,2 sets of the conveyor belt tensioning
system,one set is manual(fine tuning),the other is pneumatic
adjustment(high speed).★Thermal pipe heating plate temperature
control points seven sections with temperature display.★up cotton
belt with double cylinder S cotton belt tensioning device.★bottom
cotton belt with s-shaped correction manually tensioning mechanism,
structure simple and practical,under with manual fine-tuning.★Drive
roller coated with attached wear-resistant rubber ,showed a
herringbone structure,With a high, ensure smooth cardboard
output.★Main drive motor for frequency conversion motor,low-speed
torque,wide speed range ,reliable, and easy maintenance.★hot
plate internal for partition isolation structure,s-shaped flow of
steam,Steam, water separation function significantly improves the
utilization of steam. /* March 10, 2023 17:59:20
