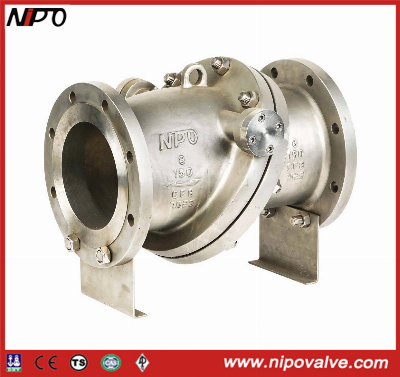

Double Flanged Type Tilting Disc Check Valve

Flange Type  Tilting Disc Swing Check Valve:Structural FeatureQuick valve disc closedown,low water hammer pressure;Applicable for and easily installed for vertical or horizontal pipelines;Smooth flow passageway and small fluid resistance;Flexible action and good sealing performance;Narrow valve travel and small closedown impact;Integrated structure,simple and compact,in beautiful shape;Long service life and good reliability.Main Parameter SpecificationDesign and manufacture:API594,API 6D,JB/TB8937;Face to face and end to end:API594,API6D,DIN3202,JB/T8937;Pressure-temperature rating:ASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74;Inspection and test: API598,JB/T9092;Pipe flange: JB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47. Product RangeBody material: carbon steel, stainless steel, alloy steel,bronzeNominal diameter:2"~24"(DN50~DN600)End Connection: RF,RTJ,BWPressure range: Class150~ 2500(PN16~PN150)Working temperature:-196ºC~+560ºCPRODUCTINSPECTIONWe welcome all the world customers to contact us for more cooperation.With our years of technical knowledge and experience,we assure you,Naibang will be one of your best parters in China. Design and manufactureAPI594,API 6D,JB/TB8937Face to face and end to endAPI594,API6D,DIN3202,JB/T8937;Pressure-temperature ratingASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74Inspection and testAPI598,JB/T9092;Pipe flangeJB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.
